ROCKBOX LINER
ROCKBOX LINER
Description: chrome moly casting vacuum brazed to mild steel backing plate
Hardness: Brinell 700+
Main application: hopper/chute liner for wear & impact protection
Installing method: arc weld or stud/bolt
Availale shape: Plain wear plate and Wear strap
Customized size & shape available

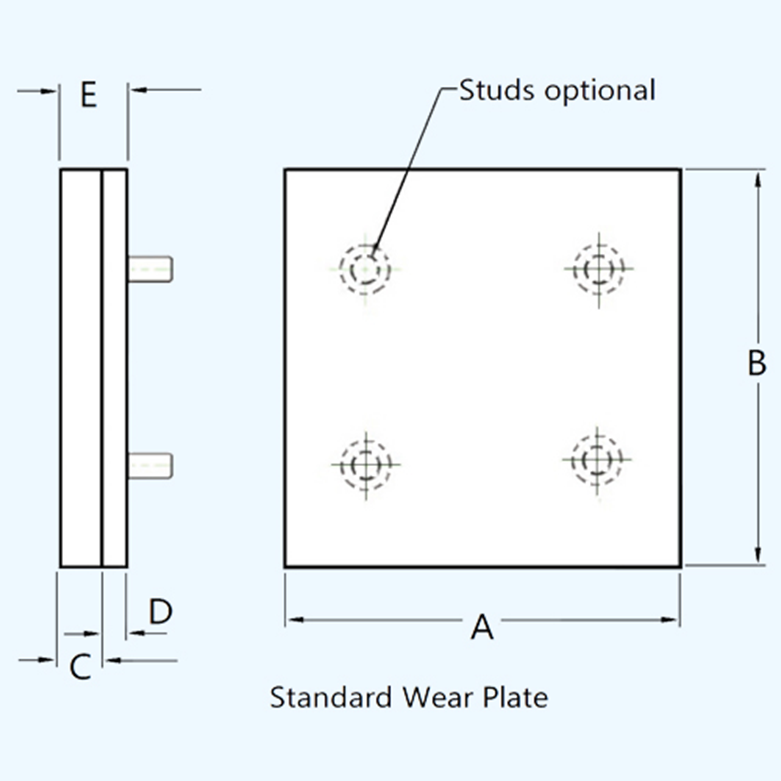

Size chart of standard type A (Wear plate) | ||||||
Part No. | A | B | C | D | E | Weight (kgs) |
LN19 | 190 | 190 | 15 | 8 | 23 | 6.80 |
LN20 | 200 | 404 | 15 | 8 | 23 | 14.80 |
LN24 | 245 | 495 | 15 | 8 | 23 | 21.95 |
LN39 | 390 | 390 | 15 | 8 | 23 | 27.60 |
LN40 | 404 | 404 | 15 | 8 | 23 | 29.70 |
LN49 | 495 | 495 | 15 | 8 | 23 | 44.50 |
LN50 | 500 | 395 | 15 | 8 | 23 | 35.70 |
LN55 | 505 | 300 | 15 | 8 | 23 | 27.50 |
LN60 | 600 | 300 | 15 | 8 | 23 | 32.6 |

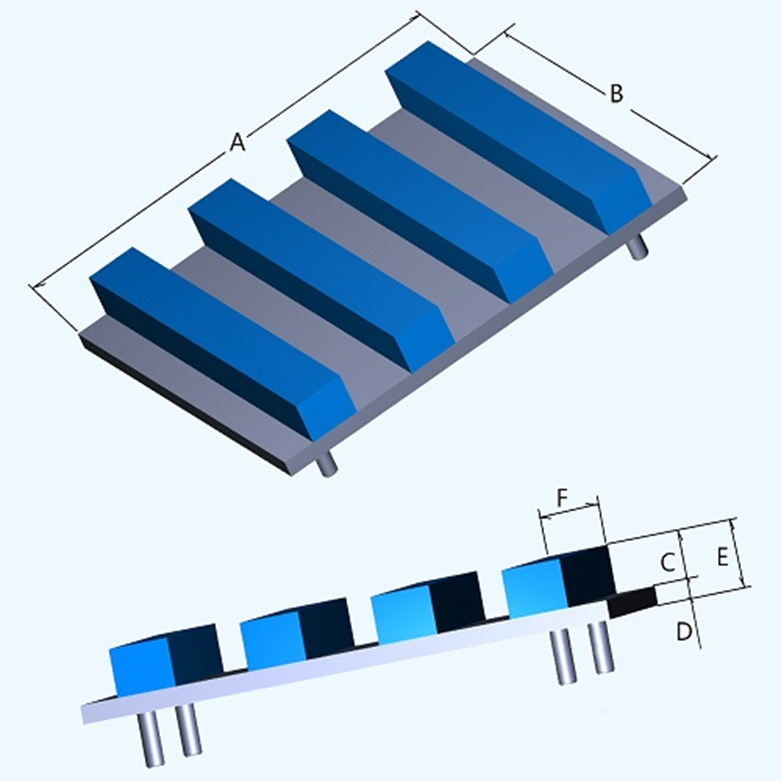

Size chart of standard type B (Wear strap) | ||||||
Part No. | A | B | C | D | E | F |
WP300 | 300 | 300 | 40 | 10 | 50 | 50 |
WP150 | 150 | 300 | 40 | 10 | 50 | 50 |
WP296 | 296 | 296 | 40 | 10 | 50 | 50 |
WP146 | 146 | 296 | 40 | 10 | 50 | 50 |
WP452 | 452 | 452 | 40 | 10 | 50 | 50 |
WP148 | 148 | 452 | 40 | 10 | 50 | 50 |
WP516 | 516 | 447 | 25 | 10 | 35 | 25 |
WP368 | 368 | 516 | 25 | 10 | 35 | 25 |
WP520 | 520 | 451 | 50 | 10 | 60 | 50 |
