CHOCKY BAR
Email：
CHOCKY BAR
CHOCKY BAR
Description: chrome moly casting vacuum brazed to mild steel backing plate
Hardness: Brinell 700+
Main application: abrasion, wear & impact protection on heavy machinery
Installing method: arc weld
Customized size is available

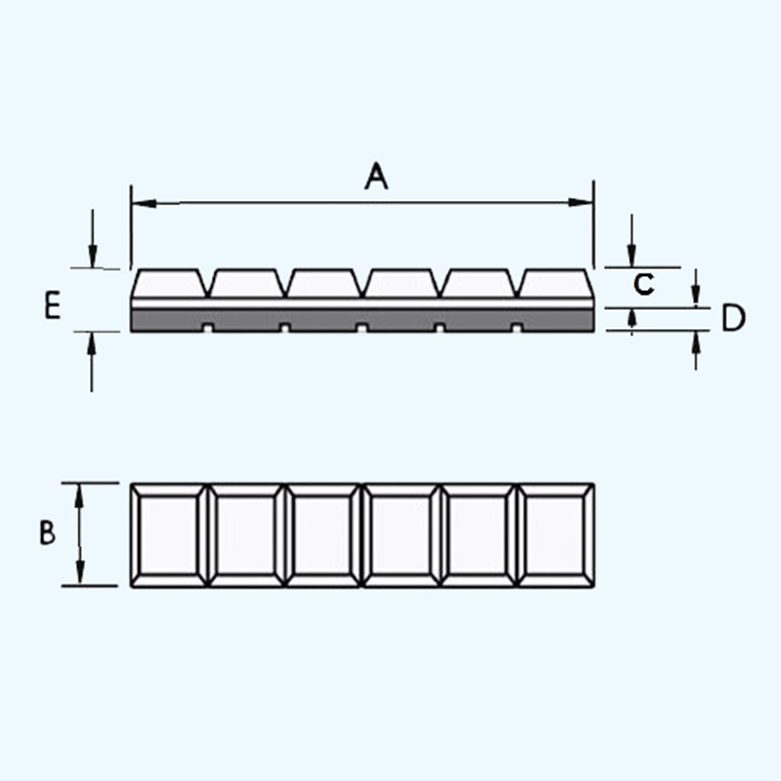

Size chart | ||||||
Part No. | A | B | C | D | E | Weight (kgs) |
CB 25N | 240 | 25 | 15 | 8 | 23 | 0.90 |
CB 40N | 240 | 40 | 15 | 8 | 23 | 1.50 |
CB 50N | 240 | 50 | 15 | 8 | 23 | 1.90 |
CB 65N | 240 | 65 | 15 | 8 | 23 | 2.50 |
CB 90N | 240 | 90 | 15 | 8 | 23 | 3.50 |
CB 100N | 240 | 100 | 15 | 8 | 23 | 3.90 |
CB 130N | 240 | 130 | 15 | 8 | 23 | 5.15 |
CB 150N | 240 | 150 | 15 | 8 | 23 | 6.2 |

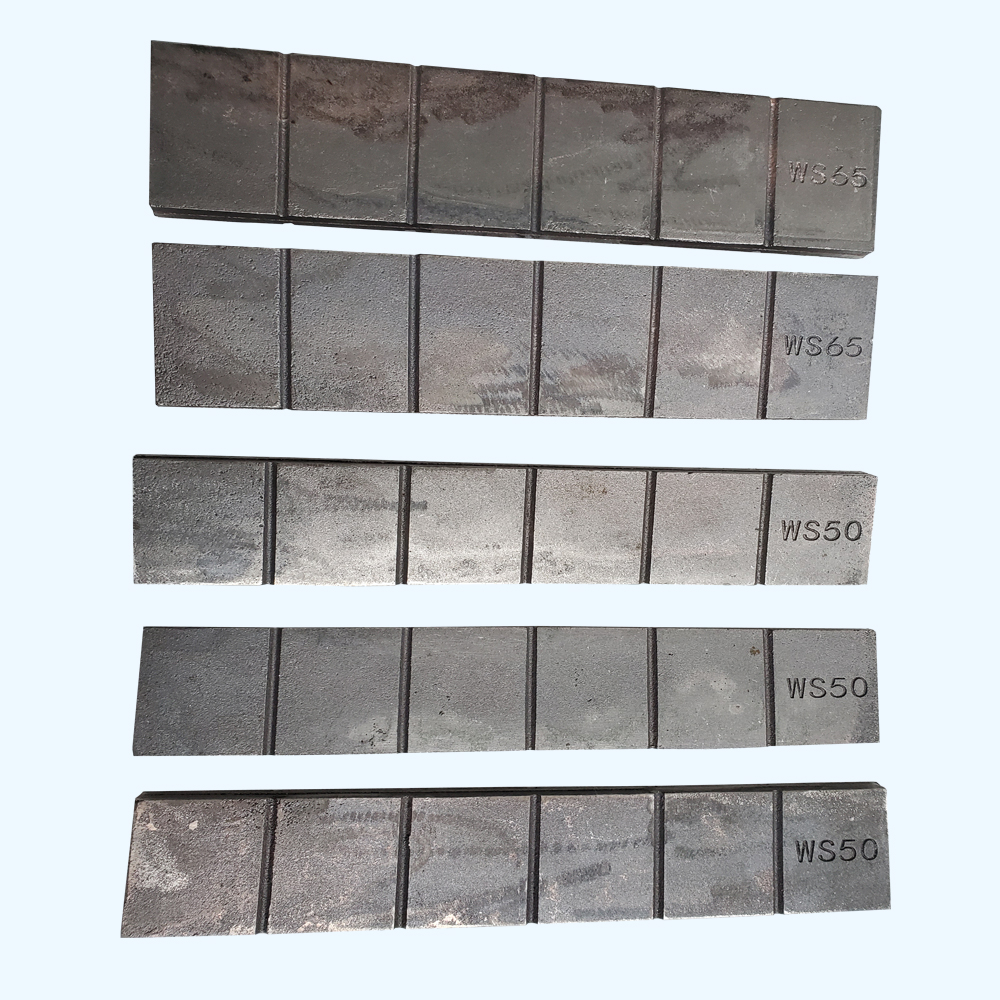

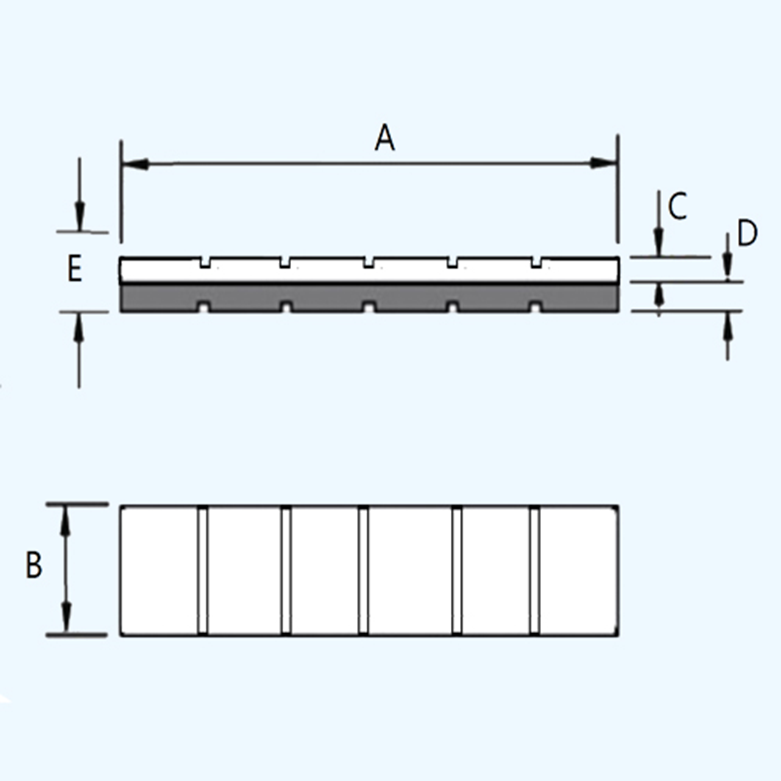

Wafer Strip | ||||||
Part No. | A | B | C | D | E | Weight (kgs) |
WS 25N | 240 | 25 | 6 | 6 | 12 | 0.6 |
WS 40N | 240 | 40 | 6 | 6 | 12 | 0.9 |
WS 50N | 240 | 50 | 6 | 6 | 12 | 1.2 |
WS 65N | 240 | 65 | 6 | 6 | 12 | 1.5 |
