WEAR BUTTON

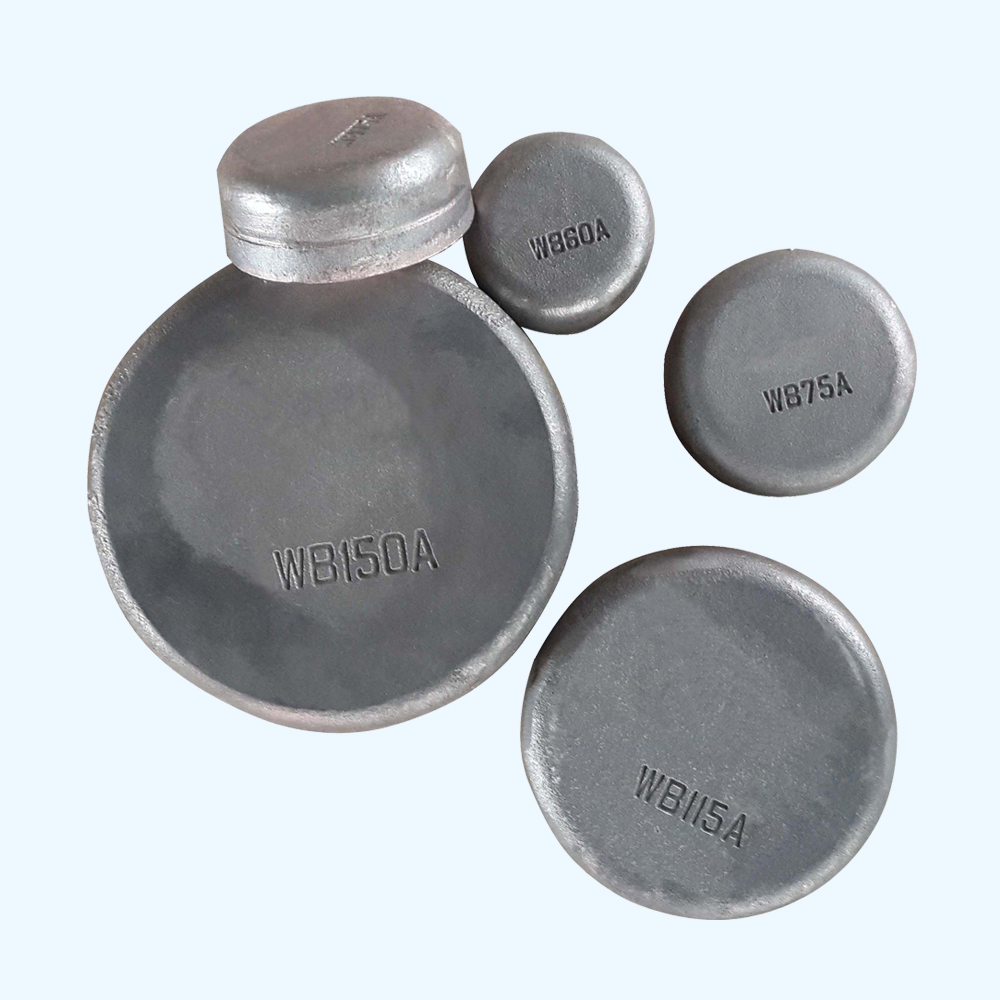

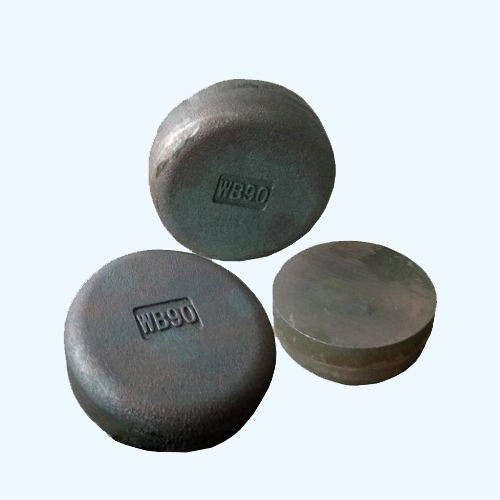

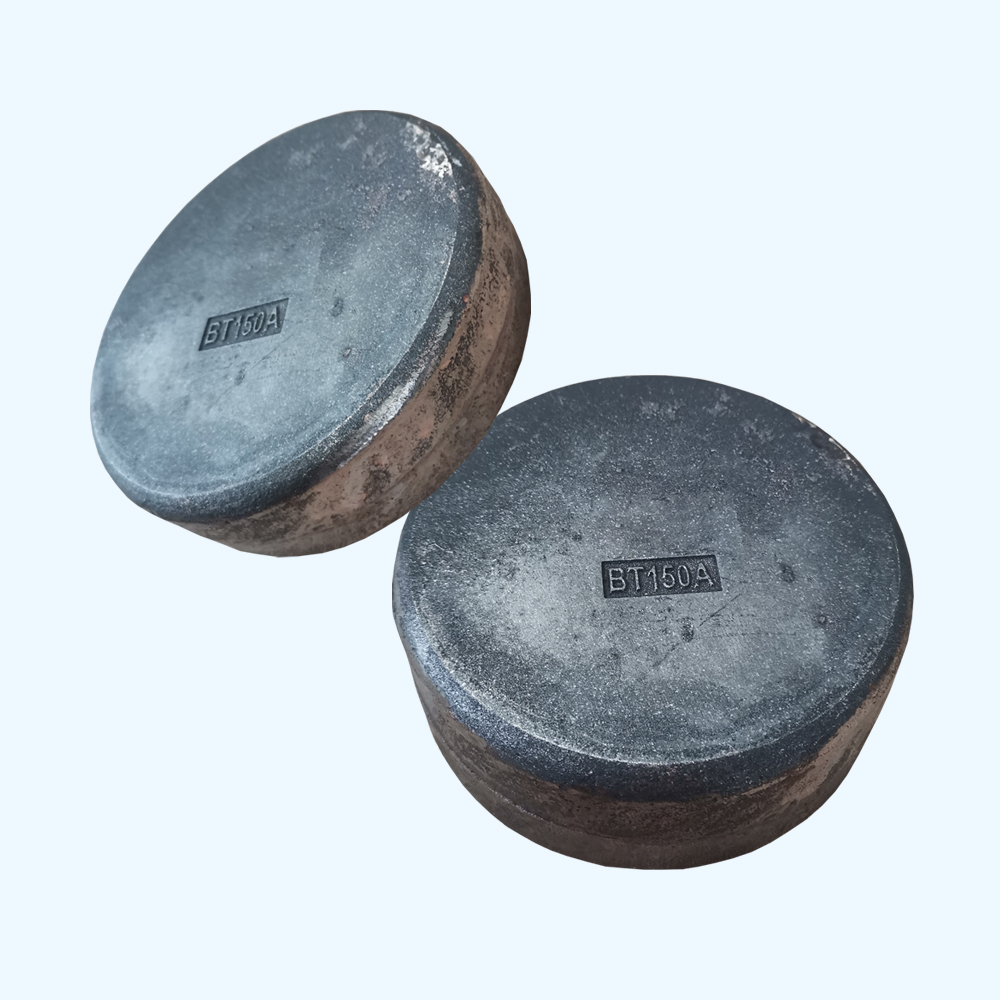

Wear Button
Description: chrome moly casting vacuum brazed to mild steel backing plate
Hardness: Brinell 700+
Main application: abrasion, wear & impact protection on heavy machinery
Installing method: arc weld
Customized size is available

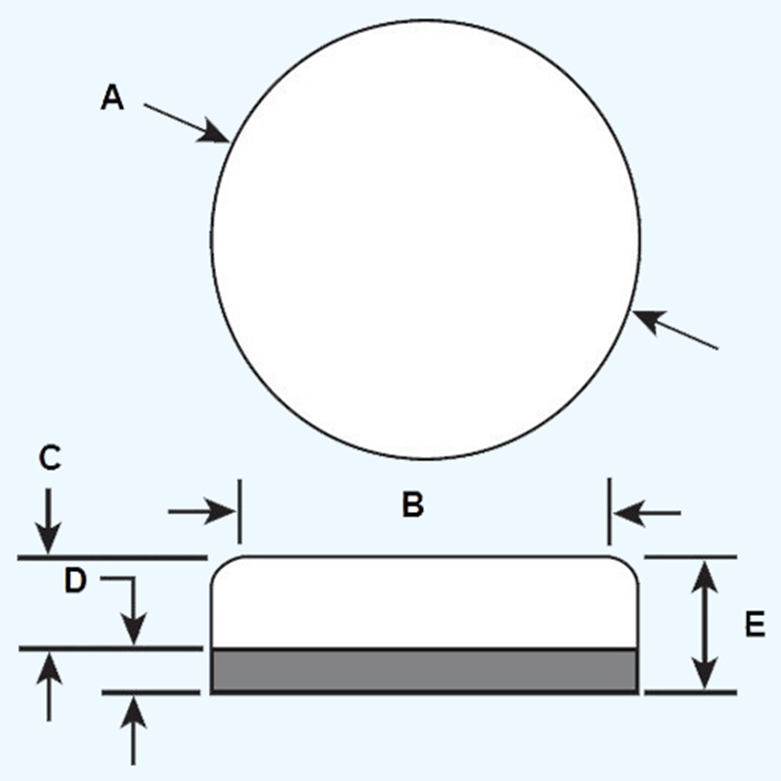

Size chart | ||||||
Part No. | A | B | C | D | E | Weight(kgs) |
WB60 | 60 | 40 | 20 | 10 | 30 | 0.7 |
WB75 | 75 | 55 | 20 | 10 | 30 | 1.0 |
WB75-27 | 75 | 55 | 17 | 10 | 27 | 0.9 |
WB90 | 90 | 70 | 20 | 10 | 30 | 1.5 |
WB90-32 | 90 | 70 | 20 | 12 | 32 | 1.6 |
WB115 | 115 | 95 | 20 | 12 | 32 | 2.6 |
WB150 | 150 | 130 | 25 | 16 | 41 | 5.7 |
WB150-32 | 150 | 130 | 20 | 12 | 32 | 4.5 |
